Overlay Carriage House

Name: Overlay Carriage House
Brand: C.H.I.
Rating: 4.5 (65 reviews)

From $100

Want to put a bold spin on a classic look? Our expertly crafted Overlay Carriage garage doors evoke a timeless, old-world aesthetic that complements both modern and contemporary architecture.

Choose from one of three materials – steel, wood, and fiberglass
Suitable for all climates
Insulated for thermal efficiency with R-values of R-10.29 – R-18.03
Comes with a limited lifetime warranty

Call us about the product CUSTOMIZE DOOR ON YOUR HOME

Brand:C.H.I.

Material:Fiberglass, Steel, Wooden

Color:

Almond (Chi)
Sandstone (Chi)
Bronze (Chi)
Black (Chi)
White (Chi)

Overview

Give timeless carriage style a bold new edge with our Overlay Carriage House garage doors. Expertly crafted from your choice of steel, wood, or fiberglass, these doors combine old-world charm with modern durability and insulation. Designed to complement both classic and contemporary architecture, Overlay Carriage House brings lasting beauty and performance to any home.

Featuring traditional designs and construction, these doors are available in steel, wood, and fiberglass.

Design options

Try Before
you buy

Use our EZDoor™ visualizer to preview a custom garage door on your actual home — so you can choose confidently before making a purchase.

Design your door

Door Designs

Panel style

Steel Overlay Carriage House
Wood Overlay Carriage House
Fiberglass Overlay Carriage House

Panel Design

Window types

Carriage House

Top section designs

Squared Top
Arched Top

Window Designs

Plain
Stockton
Madison

Single Square Tops

Window Designs

Plain
Stockton
Madison

Single Arched Tops

Window Designs

Plain
Stockton
Madison

Double Square Tops

Window Designs

Plain
Stockton
Madison

Double Arched Tops

Glass options

Frosted
Obscure
Plain
Rain
Seeded
Tinted

Decorative Hardware

Spade
Wrought Iron
Barcelona 1
Barcelona 2

Colors

Almond (Chi)
Sandstone (Chi)
Bronze (Chi)
Black (Chi)
White (Chi)

Textures

Cedar (catalog)
Mahogany (catalog)
Overlay Black (sl)
Overlay White (sl)

Construction

Personalizing Options:

We offer a variety of personalizing options to help your home stand out in your neighborhood. After choosing your door’s style and color, add glass, window designs, or hardware to dramatically change the overall look of your door and add to your home’s appeal.

1. Steel Overlay Carriage House

Section Detail: XPS composite overlay face boards are laminated to wood-grained steel sections using high performance adhesives, then factory finished in one or two-toned options.

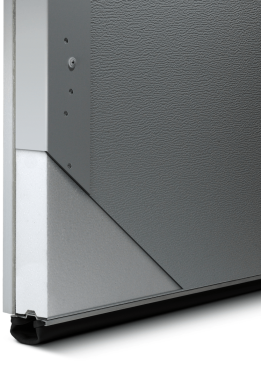

Panel Style / Model Number: Overlay Carriage House 5300

Overlay Material: XPS [Extruded Polystyrene] composite overlay face boards
Section Construction: 2.5in. Thick – 2-Sided Steel
Section Material: Heavy Duty / 272 Ga. Steel
Insulation Type: Polystyrene
R-value*: R-10.29
Thermal rating: 3/4

Personalizing Options:
Colors: yes
2-Tone Colors: yes
Windows: yes
Faux Windows: yes
Glass: yes
Decorative Hardware: yes
Warranty: Limited Warranty

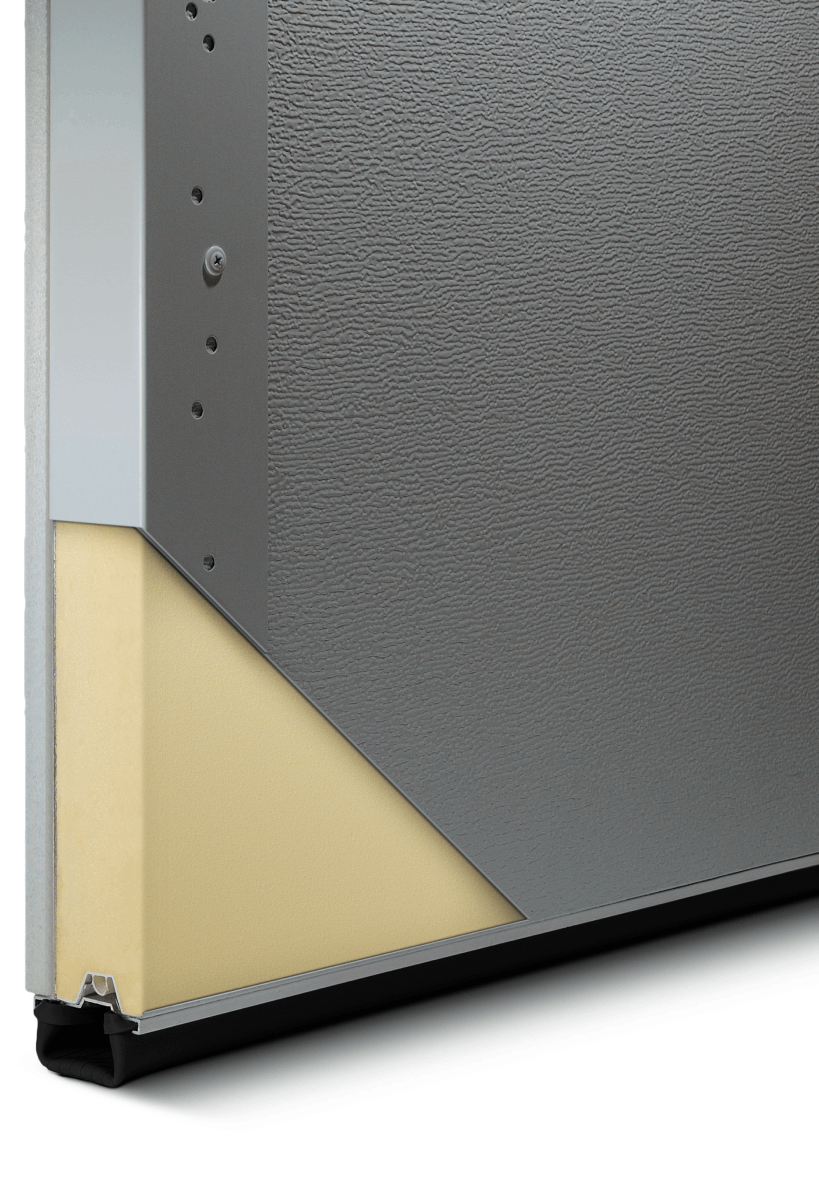

Panel Style / Model Number: Overlay Carriage House 5600

Overlay Material: XPS [Extruded Polystyrene] composite overlay face boards
Section Construction: 2.5in. Thick – 2-Sided Steel
Section Material: Heavy Duty / 272 Ga. Steel
Insulation Type: Polyurethane
R-value*: U-Factor .19 / R-17.54
Thermal rating: 4/4

Personalizing Options:
Colors: yes
2-Tone Colors: yes
Windows: yes
Faux Windows: yes
Glass: yes
Decorative Hardware: yes
Warranty: Limited Warranty

2. Wood Overlay Carriage House

Section Detail: Manufactured unfinished for field painting or staining, the wide tongue-and-groove, smooth wood overlay face boards are laminated to wood-grained steel sections with high performance adhesives.

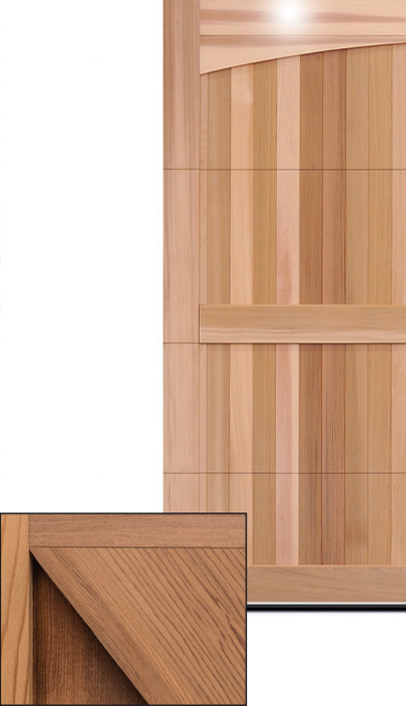

Pictured above: Door design 11A shown in cedar.

Picture left: Section detail design 34 shown in cedar.

Panel Style / Model Number: Overlay Carriage House 5400

Overlay Material: Western Red Cedar or Fijian Mahogany
Section Construction: 2.5in. Thick – 2-Sided Steel
Section Material: Heavy Duty / 272 Ga. Steel
Insulation Type: Polystyrene
R-value*: R-10.78
Thermal rating: 3/4

Personalizing Options:
Wood: yes
Windows: yes
Faux Windows: yes
Glass: yes
Decorative Hardware: yes
Warranty: Limited Lifetime Warranty

model-5400

Panel Style / Model Number: Overlay Carriage House 5600

Personalizing Options:
Wood: yes
Windows: yes
Faux Windows: yes
Glass: yes
Decorative Hardware: yes
Warranty: Limited Lifetime Warranty

model-5600

3. Fiberglass Overlay Carriage House

Section Detail: Impact-resistant fiberglass beadboard and XPS composite overlay face boards are laminated to wood-grained steel sections with high performance adhesives, then factory finished.

Pictured above: Door design 34 shown in sandstone.

Picture left: Section detail design 35 shown in white.

Panel Style / Model Number:

Overlay Carriage House 5500

Overlay Material: Fiberglass beadboard with XPS [Extruded Polystyrene] composite overlay face boards
Section Construction: 2.5in. Thick – 2-Sided Steel
Section Material: Heavy Duty / 272 Ga. Steel
Insulation Type: Polystyrene
R-value*: R-10.67
Thermal rating: 3/4

Personalizing Options:
Colors: yes
Windows: yes
Faux Windows: yes
Glass: yes
Decorative Hardware: yes
Warranty: Limited Lifetime Warranty

Panel Style / Model Number:

Overlay Carriage House 5800

Overlay Material: Western Red Cedar or Fijian Mahogany
Section Construction: 2.5in. Thick – 2-Sided Steel
Section Material: Heavy Duty / 272 Ga. Steel
Insulation Type: Polyurethane
R-value*: U-Factor .19 / R-17.92
Thermal rating: 4/4

Personalizing Options:
Wood: yes
Windows: yes
Faux Windows: yes
Glass: yes
Decorative Hardware: yes
Warranty: Limited Lifetime Warranty

model-5800

*Calculated door section R-value is in accordance with DASMA TDS-163.

Model specifications

Model #	5300	5400	5500	5600	5700	5800
Panel Style	Square or Arched	Square or Arched	Square or Arched	Square or Arched	Square or Arched	Square or Arched
Section construction	2-1/2” Thick – 2-Sided Steel	2-3/4” Thick – 2-Sided Steel	2-1/2” Thick – 2-Sided Steel	2-1/2” Thick – 2-Sided Steel	2-3/4” Thick – 2-Sided Steel	2-1/2” Thick – 2-Sided Steel
Material	Medium Duty / 27 Ga. Steel	Medium Duty / 27 Ga. Steel	Medium Duty / 27 Ga. Steel	Heavy Duty / 27 Ga. Steel	Heavy Duty / 27 Ga. Steel	Heavy Duty / 27 Ga. Steel
R-value	10.29	10.78	10.67	17.54	18.03	17.92
Insulation type	Polystyrene	Polystyrene	Polystyrene	Polyurethane	Polyurethane	Polyurethane
