Overview of Garage Door Lift Types

Quick definitions

Headroom = clear space above the top of the door to the ceiling/lowest obstruction.
Sideroom = space from each jamb to the nearest interior obstruction (needed for vertical tracks/brackets).
Pro tip: For standard lift setups, add ~2" of headroom if a ceiling-mounted opener will be used. (Low-headroom double-track systems usually don’t need that extra 2".)

Type 1

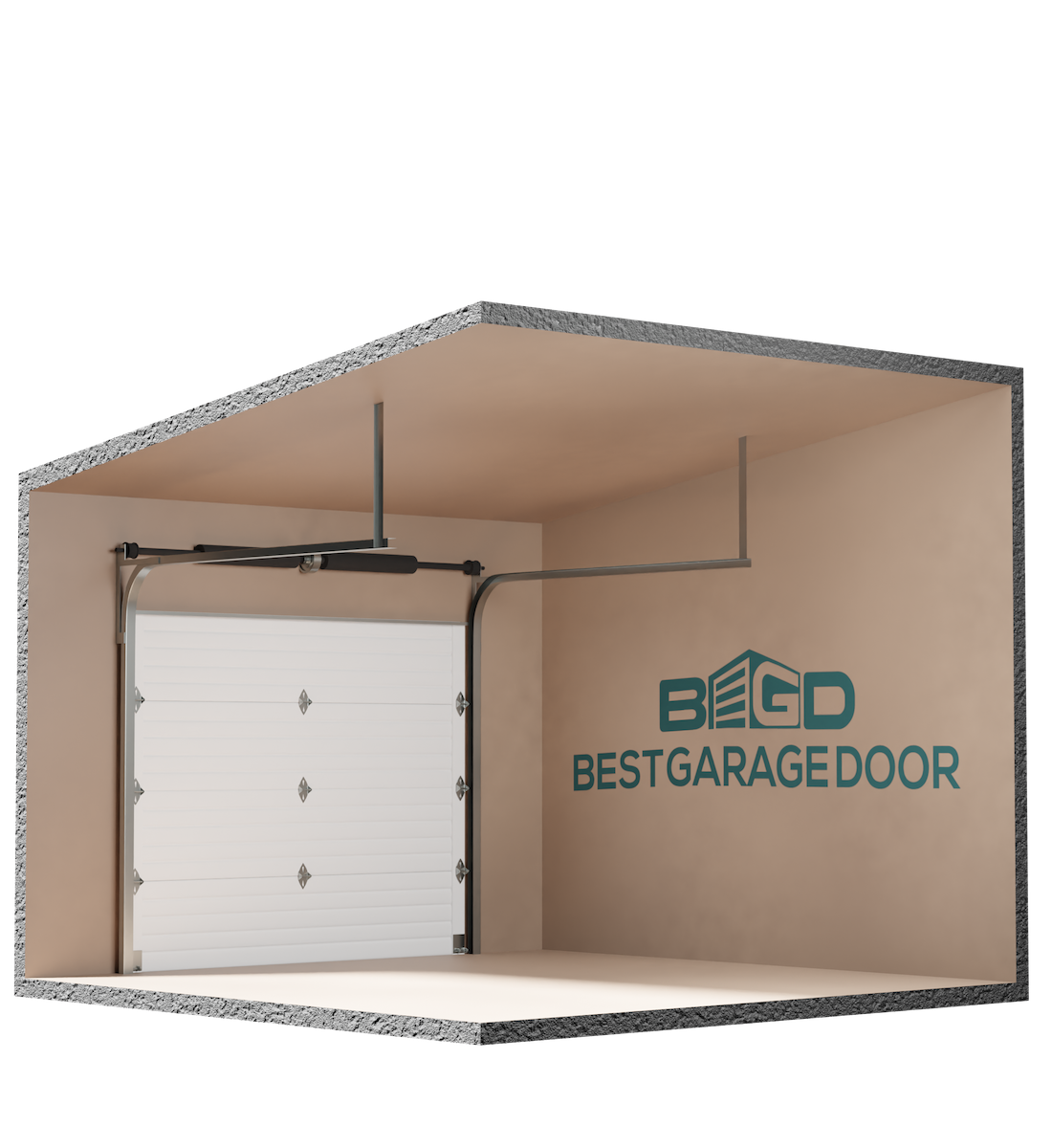

Standart Lift
The “classic” residential setup—door curves back and parks flat under the ceiling. Smooth, quiet, and cost-effective for normal ceilings. Can be paired with a ceiling-mounted or a side-mount (jackshaft) opener.
Headroom

12" for a 12" radius (2" track) ~14¼" for a 15" radius (2" track) 3" track may require more.
Sideroom

Each Side 4''
Total System Hight

Door hight + Headroom
Type 2

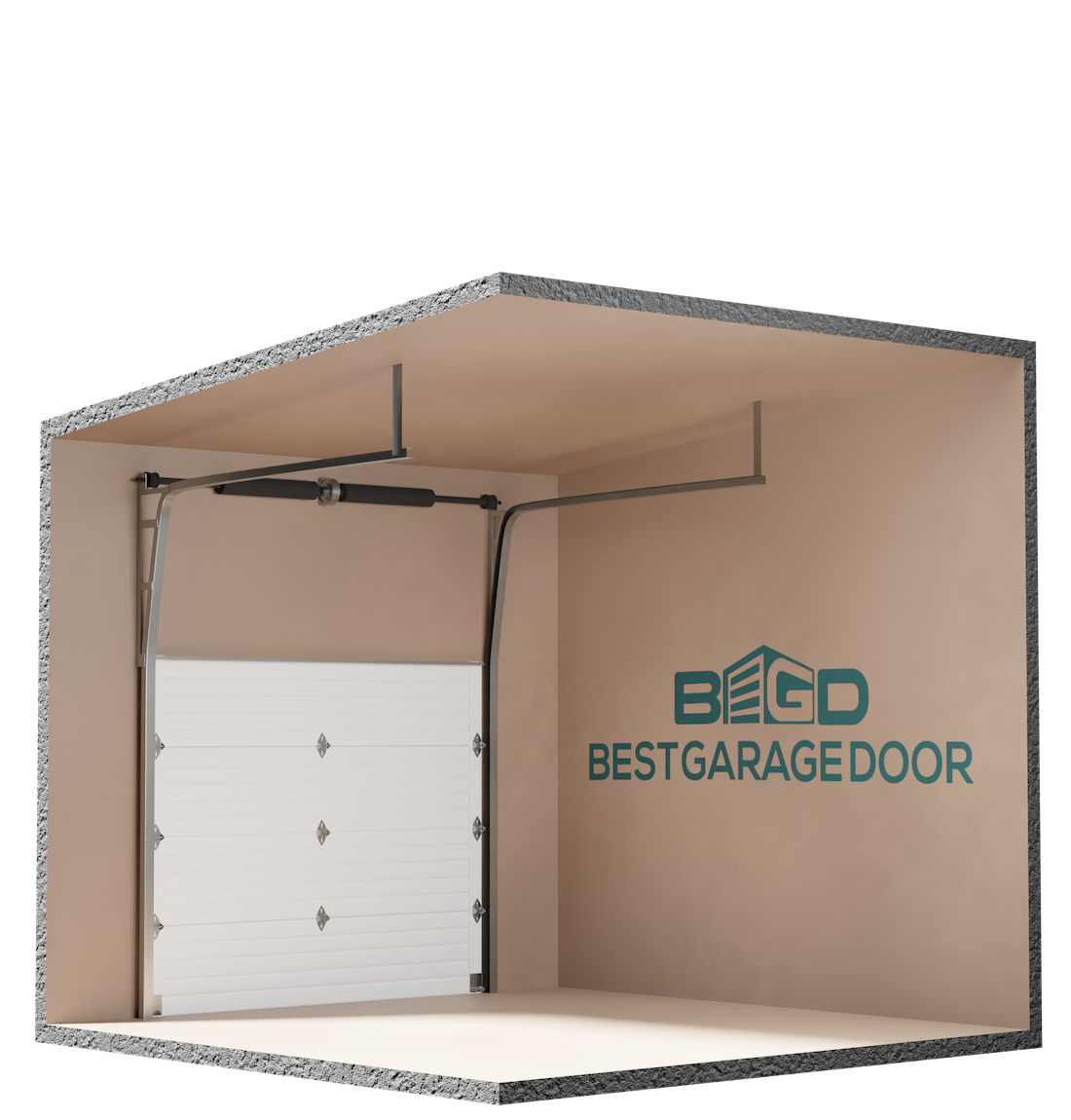

high Lift
Raises the door higher up the wall before it turns—perfect for car lifts, tall workspaces, and maximizing overhead storage. Paired with a side-mount (jackshaft) opener only.
Headroom

High-lift amount + ~9-1/2" above the opening (for the curve/drums).
Sideroom

Each Side 4''
Total System Hight

Door hight + High-lift Amount + Headroom

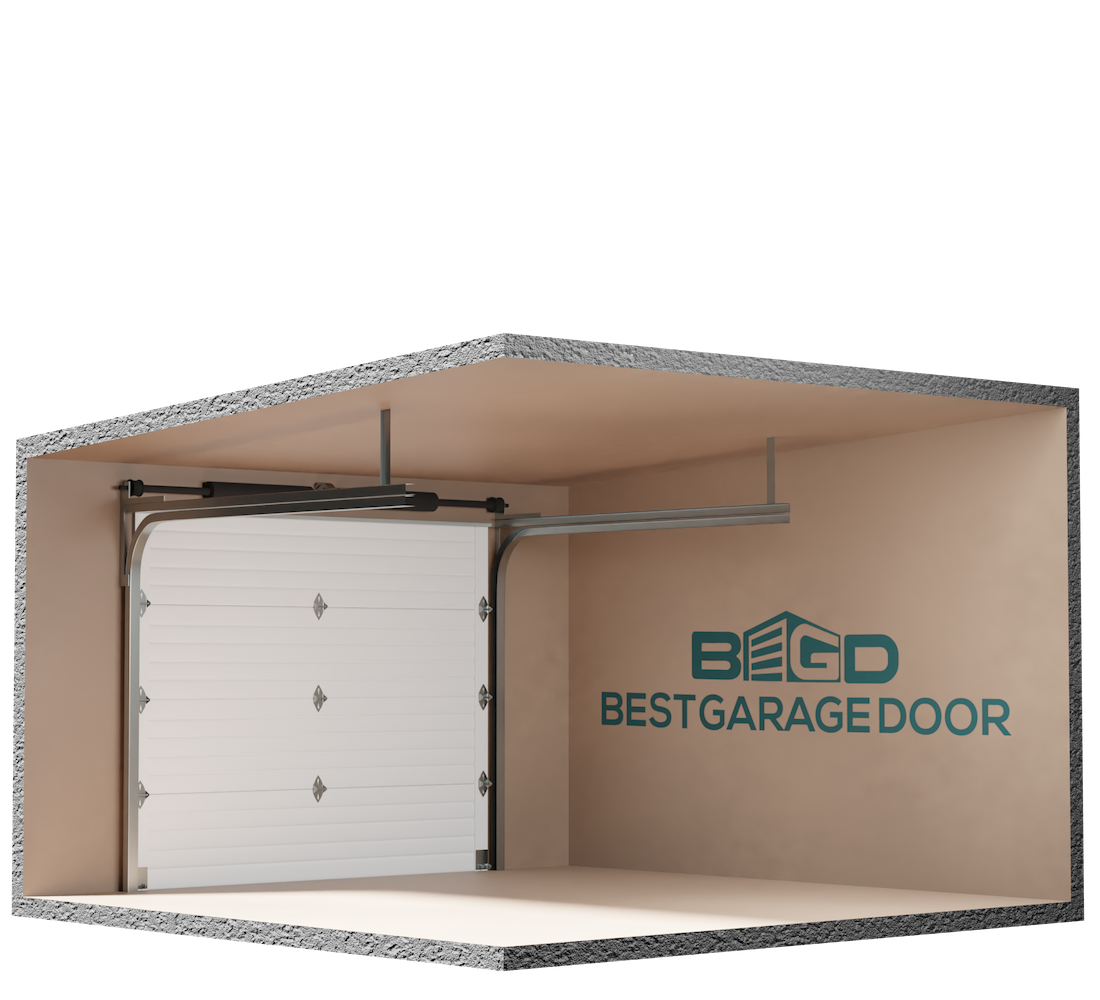

Type 3
Low Headroom Front Lift
Garages that don’t have enough space for standard lift. The double-track lets the top section move back almost immediately, saving vertical clearance.
Headroom

High-lift amount + ~9-1/2" above the opening (for the curve/drums).
Sideroom

Each Side 4''
Total System Hight

Door hight + Headroom
Type 4

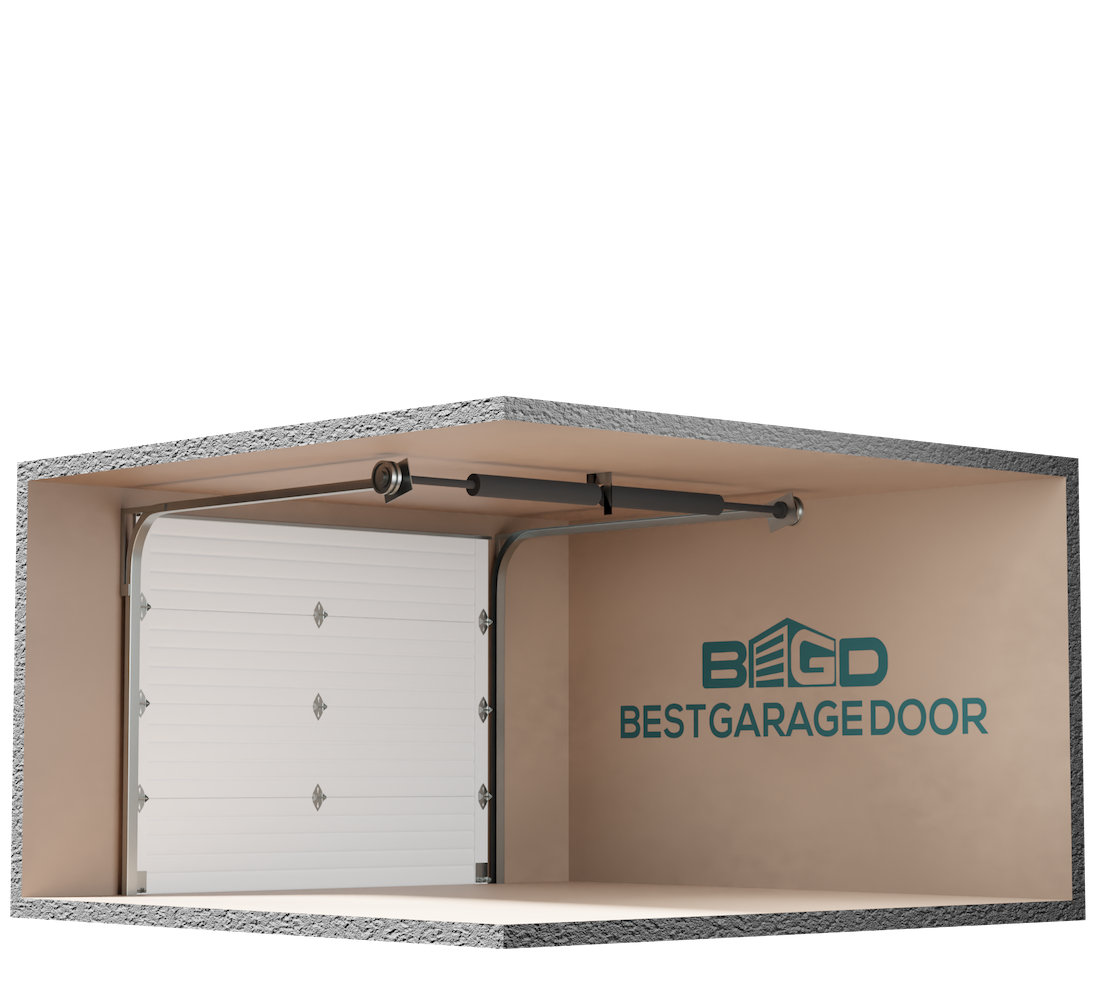

Low Headroom Rear Lift
Even tighter ceilings than front-mount. Spring moves to the back to free up space above the opening. Great when you’re under the 6" thresholds that block standard/front-mount options.
Headroom

About 4-1/2" (on 2" track)
Sideroom

~7-1/2" each side due to hardware layout.
Total System Hight

Door hight + Headroom
Type 5

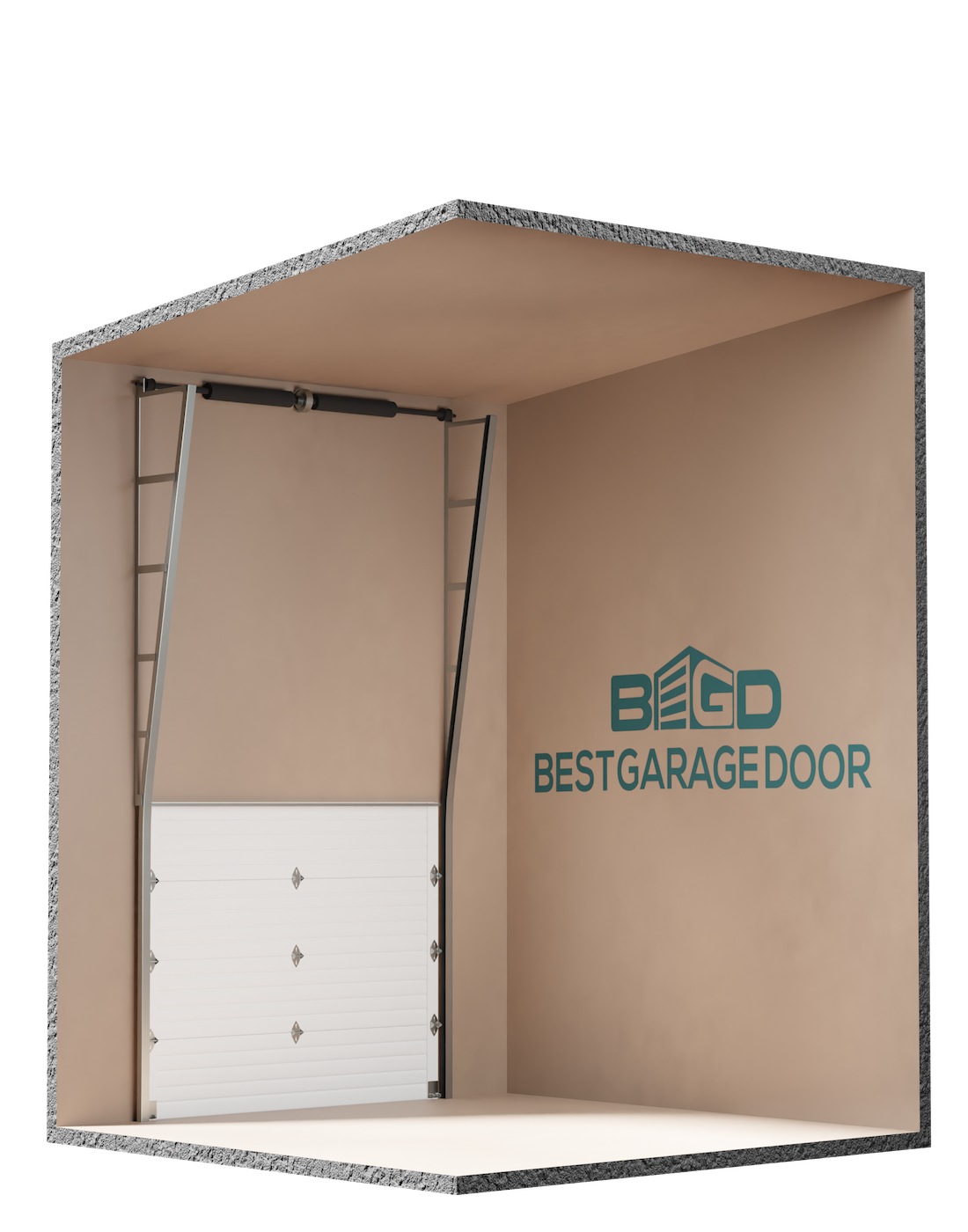

Vertical Lift
Tall walls/industrial-style spaces or specialty residential projects where the door stacks vertically along the wall. Paired with a side-mount (jackshaft) opener only.
Headroom

About the door height above the opening (plus space for drums/shaft) because the door travels straight up with no curve.
Sideroom

Each Side 4''
Total System Hight

Double Door Hight + 6''

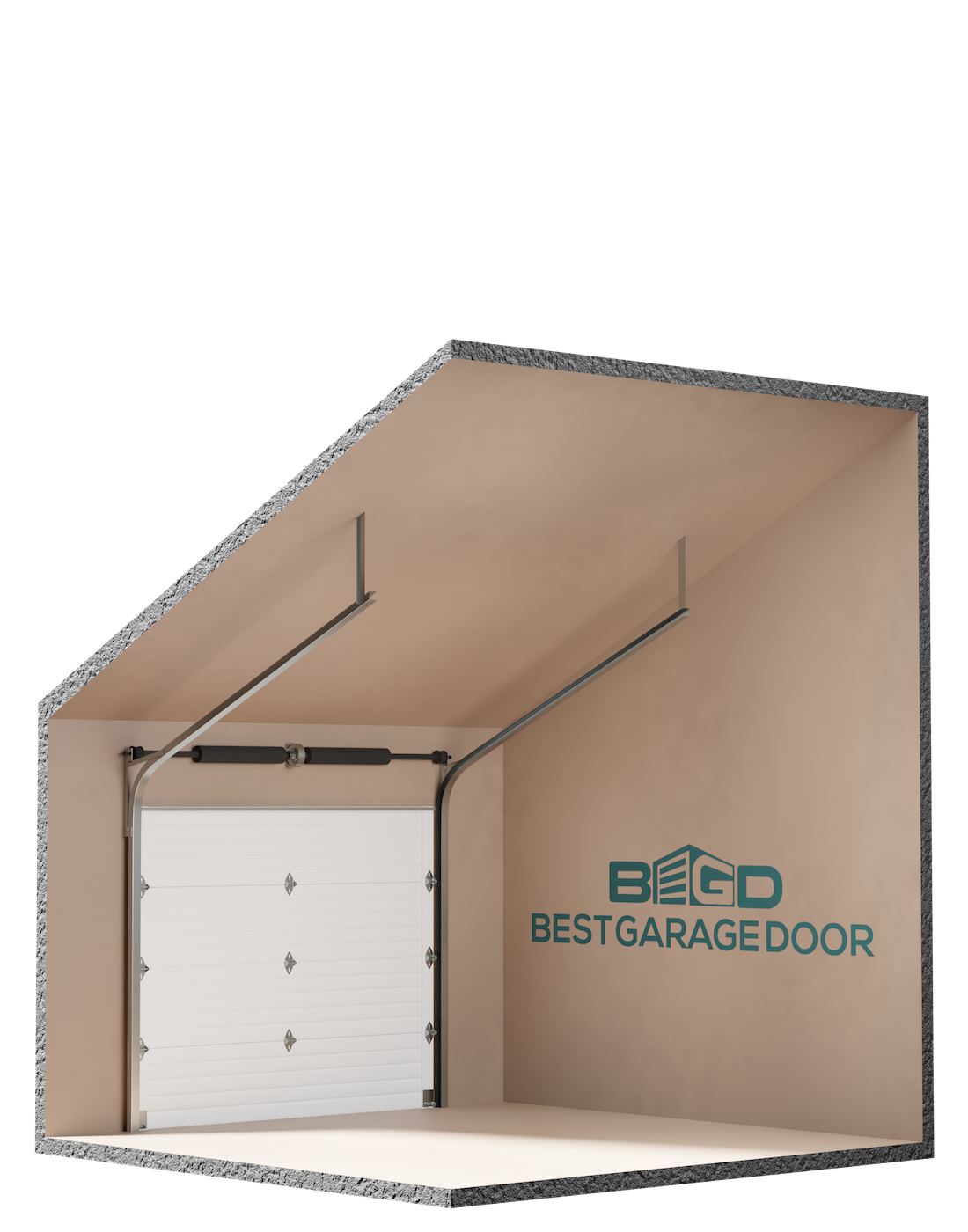

Type 6
Follow the Roof Pitch Lift
Sloped or vaulted ceilings where you want the open door to sit parallel to the roofline and keep aisle space clear. Paired with a side-mount (jackshaft) opener only.
Headroom

Varies by slope; expect a bit more than standard 12-15'' to accommodate the angled rails.
Sideroom

Each Side 4''
Total System Hight

Door hight + Headroom

Choosing the Right Garage Door for Your Home

Selecting the perfect garage door involves more than aesthetics; it's about finding a match for your home's architecture, available space, and lifestyle. Best Garage Door Repair and Service (BGD) offers a range of door types to cater to various needs, ensuring a blend of style, functionality, and security.

Why Consult BGD Professionals?

Our experienced team at BGD knows that every home is unique, and so should its garage door. The decision can be overwhelming with myriad options—from roll-up to overhead sectional, from tilt-up to custom-designed doors. That’s why professional advice is not just a luxury; it’s a necessity.

Our professionals at BGD help you navigate the choices and offer personalized solutions that reflect your home’s design and meet your specific requirements. At the heart of our operations lies a steadfast dedication to safety, where each door installation is executed with meticulous precision and attention, offering unparalleled security and tranquility for the foreseeable future.

Why Consult BGD Professionals?

With our personalized garage door solutions, we tailor your home's unique needs.
We ensure security and peace of mind.
Expert team provides professional advice to help you make the best decision.
With meticulous precision and attention to detail, we guarantee a top-quality garage door installation.

At Best Garage Door Repair and Service (BGD), we understand that the lift mechanism is a critical feature of any garage door system. It’s the heart of operation, dictating how your garage door opens and how much space it requires. Knowing the differences between the types of lift mechanisms can significantly influence the suitability of your home’s design and functionality.
